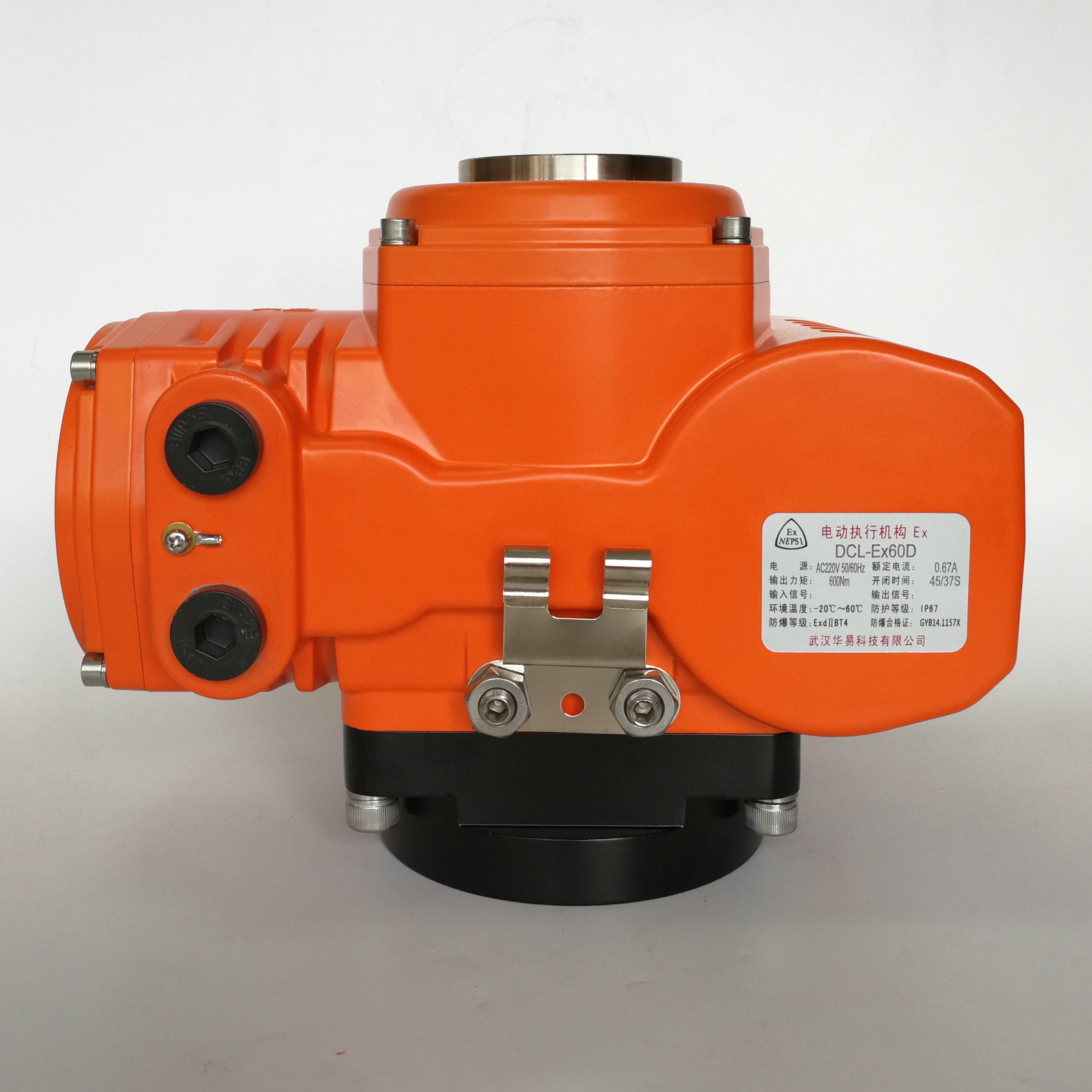

AC220V 600Nm IP68 Explosion Actuator

• Quarter turn operation with mechanical limits
• Cylinder stop type connection surfaces of very housing cover, flame proof gap and length complied to UL and CSA standard
• Class 1 Zone 1 AExdIICT4 grade and Class 1 Division 1, Group C, D T4.
• Double lip skeleton oil seal and O-ring seal to ensure protection grade to waterproof IP68.
• Hard die cast aluminum alloy enclosure to ensure actuator's resistance of high explosion pressure(＞2.2 MPa).
• Non-ventilated motor with fire treatment and thermal overload protection
• Manual override with Allen wrench and handwheel
• ISO5211 multi flange mounting
• CSA certification in process per UL standard/ATEX marked

DCL fire safe compact electric actuators can be motorized by multi grade electric power, including 24VDC, 24VAC, 110VAC, 220VAC, 380VAC, 440VAC etc. Integral motor/housing/control pack design make DCL explosion proof electric actuators become the smallest actuators for certain torque range. The machining accuracy of enclosure is 100% inspected and perfectly controlled by DCL to ensure no dangerous when explosion happen. Every actuator suffers underwater test to make sure the sealing grade to IP68 and NEMA7.

Actuators are under strict tests hold by CSA per UL and CSA standard. CSA certification will be obtained both for Zone and Division system in Q4 2020. ATEX certified by EU authorized certification body.
